Harvard Law School NW Corner

2007 – Cambridge, MA

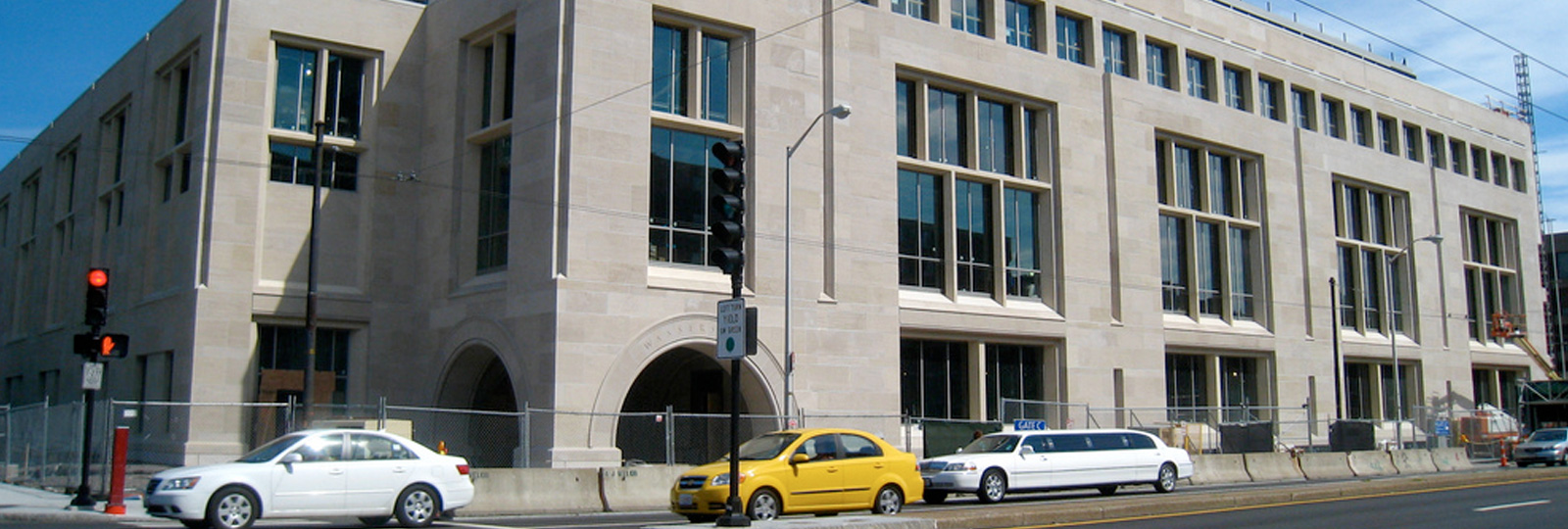

The project is located at the corner of Massachusetts Avenue and Everett Street in Cambridge, MA. The building is a 6-story building, which, once completed, will be used for academic, student and clinical centers. The foundation work consisted of the construction of a 36” thick slurry wall and load bearing elements (LBE’s) for top-down construction of the garage structure, which includes a basement level plus 4 levels of underground parking. The slurry wall serves as support of excavation and permanent foundation wall.
